Azure Front Door: A Practical Guide to Building a Global Edge (Standard vs Premium)

Most systems do not need this. If your risk model requires a manual failover path around AFD (for example, to a secondary global ingress), plan it explicitly:

• BYO certificates (do not depend on certificates that cannot be exported)
• Runbooks and DNS TTL strategy
• A practiced manual cutover procedure

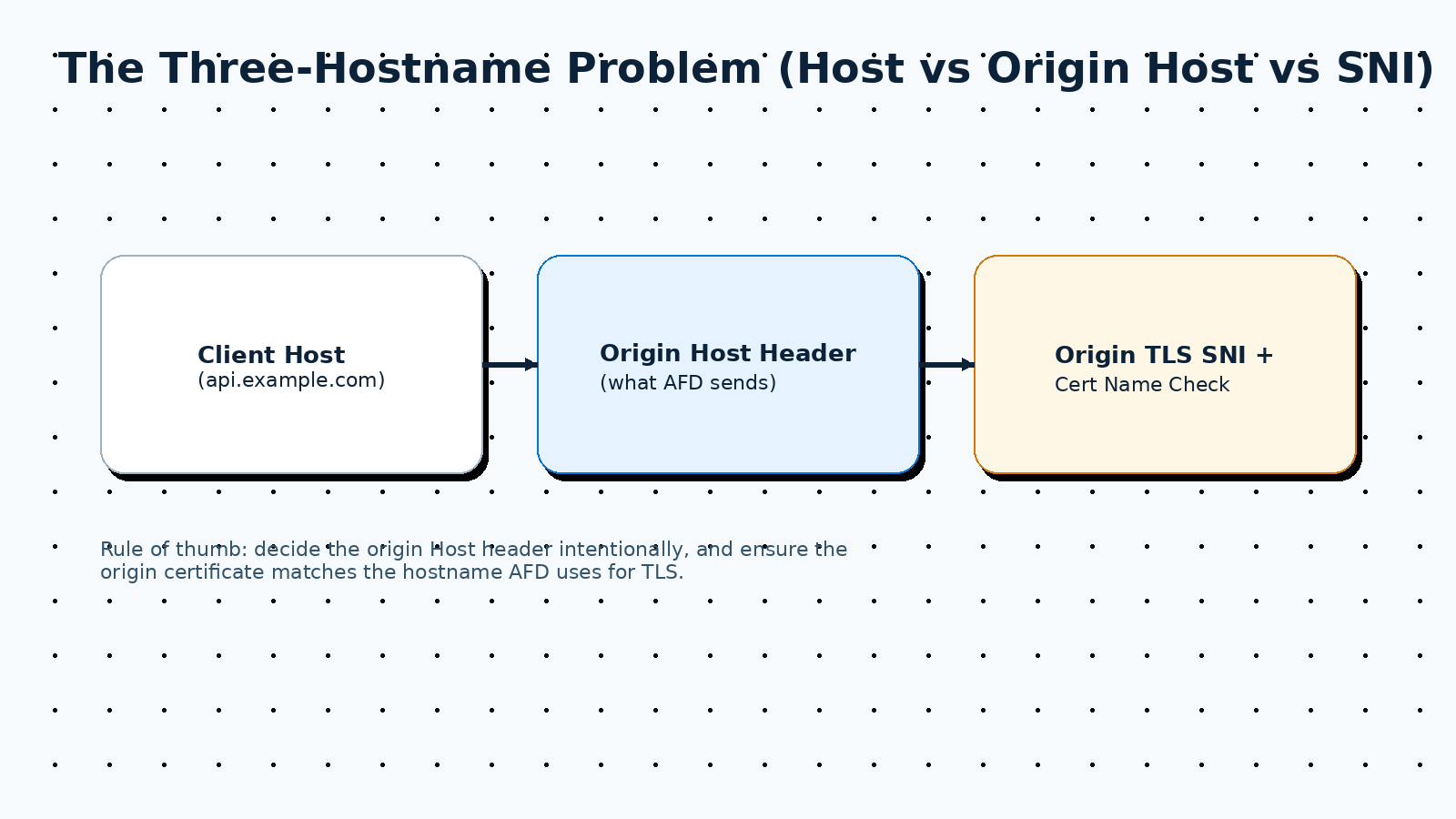

The most common production issue: the “three-hostname problem”

A large share of real AFD incidents come from mixing up these three values:

1. Client Host header (what the browser/API client sends) – Example: api.example.com
2. Origin Host header (what AFD sends to your backend) – This is configurable. If you leave it unset, AFD may pass through the incoming Host header.
3. TLS SNI / certificate name check to the origin – AFD connects to the origin over TLS. The origin must present a certificate that matches the hostname AFD uses.

Where this blows up:

• Your origin expects myapp.azurewebsites.net as Host, but AFD forwards api.example.com.
• Your origin certificate is valid for regional-gw.contoso.net, but AFD is configured to connect to 10.0.0.4 or another name that does not match the cert.

Hard rule: Decide deliberately what Host header the origin should receive, then align origin TLS certificates and routing accordingly.

Origin security: do not leave origins open to the internet

Even with WAF at the edge, assume attackers will try to bypass AFD and hit your origin directly. “Origin lockdown” is mandatory.

Option 1: Lock down public origins (no Private Link)

At a minimum, do both:

• Restrict inbound traffic to the origin to Azure Front Door backend egress ranges (service tags) where supported.
• Require an application-layer secret/identifier that only AFD sends (commonly done by validating an AFD-specific header).

Why both? IP allow-lists alone are often not enough (shared infrastructure and changing ranges). Header validation alone is not enough if someone can send the same header to your public origin. Combining them is significantly stronger.

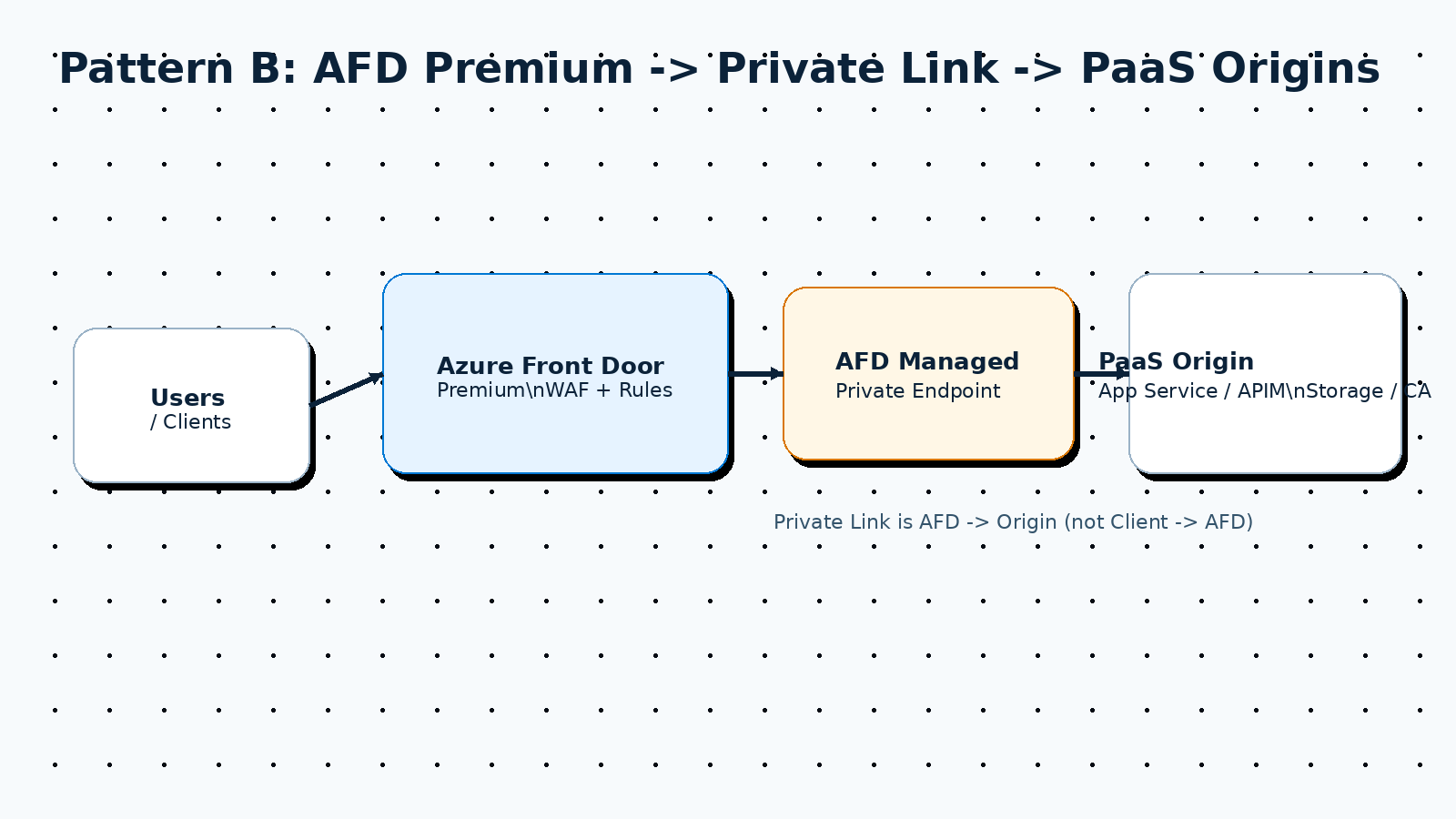

Option 2: Use Private Link to origins (Premium)

If you can use Private Link, you can remove public exposure from supported origins. Still do defense-in-depth (cert validation, least-privilege, and app-level checks), but your baseline posture is better.

WAF: how to roll it out without breaking production

Treat WAF as an operational system, not a checkbox.

Recommended rollout:

• Start in Detection mode in non-prod (or limited prod scope) to measure false positives.
• Move to Prevention with a written rollback plan and an owner for tuning.

What to implement early:

• Rate limiting on sensitive endpoints (login, token issuance, expensive searches)
• Allow/deny lists for admin paths
• Geo restrictions if your business model supports it

Avoid:

• A giant set of exclusions with no owner. Every exclusion should have a reason and a review date.

Observability you should enable on day one

AFD problems are hard to debug if you do not have logs from the start.

Enable:

• Access logs (requests, status codes, latency)
• WAF logs (blocked/matched rules)
• Health probe logs (origin health and probe failures)

Operational habit:

• Pick one request correlation identifier and use it in incident response. AFD provides tracking headers; ensure your origin logs them too.

TLS and certificates: make rotation a design requirement

At the edge:

• Prefer a single certificate strategy for your public domains (managed vs BYO).
• If you need advanced failover patterns or sharing certs across ingress providers, plan on BYO certificates.

To the origin:

• Keep certificate validation enabled whenever possible.
• Ensure the origin certificate matches the hostname AFD uses to connect.
• Treat “it works in the portal” as insufficient; test renewal/rotation in a lower environment.

Terraform starter (minimal shape)

Below is a high-level skeleton (not a full module) to show the moving pieces you will typically manage:

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = ">= 4.0.0"
    }
  }
}

provider "azurerm" {
  features {}
}

# 1) Front Door profile (Standard or Premium)
resource "azurerm_cdn_frontdoor_profile" "this" {
  name                = "afd-${var.name}"
  resource_group_name = var.resource_group_name
  sku_name            = var.sku_name # Standard_AzureFrontDoor or Premium_AzureFrontDoor
}

# 2) Endpoint
resource "azurerm_cdn_frontdoor_endpoint" "this" {
  name                     = "ep-${var.name}"
  cdn_frontdoor_profile_id = azurerm_cdn_frontdoor_profile.this.id
}

# 3) Origin group + origins
resource "azurerm_cdn_frontdoor_origin_group" "api" {
  name                     = "og-api"
  cdn_frontdoor_profile_id = azurerm_cdn_frontdoor_profile.this.id

  health_probe {
    interval_in_seconds = 30
    path                = "/healthz"
    protocol            = "Https"
    request_type        = "GET"
  }
}

resource "azurerm_cdn_frontdoor_origin" "api_r1" {
  name                          = "api-r1"
  cdn_frontdoor_origin_group_id = azurerm_cdn_frontdoor_origin_group.api.id
  host_name                     = var.origin_r1_hostname
  origin_host_header            = var.origin_host_header
  https_port                    = 443
  enabled                       = true
  priority                      = 1
  weight                        = 1000
}

# 4) Route (maps endpoint paths to origin group)
resource "azurerm_cdn_frontdoor_route" "api" {
  name                          = "route-api"
  cdn_frontdoor_endpoint_id     = azurerm_cdn_frontdoor_endpoint.this.id
  cdn_frontdoor_origin_group_id = azurerm_cdn_frontdoor_origin_group.api.id
  cdn_frontdoor_origin_ids      = [azurerm_cdn_frontdoor_origin.api_r1.id]

  supported_protocols    = ["Http", "Https"]
  patterns_to_match   = ["/*"]
  forwarding_protocol = "HttpsOnly"
  link_to_default_domain = true
  https_redirect_enabled = true

  # Add a `cache {}` block only for static paths. For most APIs, omit caching entirely.
}

For production, you will usually add:

• Custom domains + certificate settings
• WAF policy + security policy association
• Rules engine (header rewrites, redirects, path-based routing)
• Diagnostic settings to Log Analytics
• Private Link settings (Premium) where applicable

Troubleshooting: the failures you will see in real life

Symptom: 502/503 from AFD

Common causes:

• Origin TLS mismatch (certificate does not match the hostname AFD uses)
• Origin health probe failing (wrong path, auth required, slow response)
• Private Link not approved yet (when using Premium)

Triage checklist:

• Check health probe logs first.
• Validate origin Host header and origin certificate name.
• Temporarily bypass WAF to isolate edge security vs origin availability issues (with care).

Symptom: 403 loops or unexpected blocking

Common causes:

• WAF is blocking a legitimate request (false positive)
• Origin lockdown is blocking AFD (misconfigured service tags or header validation)

Triage checklist:

• Compare access logs vs WAF logs for the same request.
• Verify the origin is receiving the expected AFD headers.

Symptom: wrong backend/tenant (multi-tenant gateways)

Common cause:

• Host header rewrite: your gateway routes by Host, but AFD is forcing a fixed origin Host header.

Fix:

• Preserve Host end-to-end when your origin routing depends on it, and ensure the regional ingress has a certificate that matches that Host.

Go-live checklist (copy/paste)

• Origin host header and origin TLS certificate name are aligned.
• Health probe path returns fast, unauthenticated success.
• Origin is locked down (not reachable directly from the internet).
• WAF deployed with a tuning and rollback plan.
• Logs enabled and flowing to your SIEM/Log Analytics.
• Certificate rotation validated in a lower environment.
• Failover behavior tested (region down drill).

Closing

AFD is powerful, but the “easy demo” path is not the same as a reliable production edge. If you treat host headers, TLS, and origin lockdown as first-class design constraints (and you turn on logs early), AFD becomes a very solid foundation for global apps on Azure.
